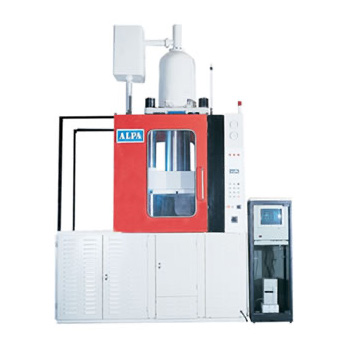

250/85 Tons Bakelite and Rubber Transfer Press
160/60 Ton Bakelite Transfer Press




TECHNICAL DATA

   MACHINE TYPE

ATP-160/60

ATP-250/85
   Clamping Force

Tons

160

250
   Operating Pressure

kg/cm2

250

250
   Motor Power

HP

10

15
   Platen Dimensions

mm

600 x 600

620 x 750

   Ramstroke

mm

380

450
   Max.Space Between Platens

mm

680

800
   Free Falling Speed

mm/sec

Adjustable

Adjustable
   Injection Piston Power

Tons

60

85
   Injection Piston Stroke

mm

200

250
   Injection Speed

mm/sec

0-12

0-12
   Return Speed (Max.)

mm/sec

100

100
   Overall Sizes

mm

1650x1000
x3150(h)

1850x1000
x3450(h)
   Approximate Weight

kg

3900

6800


• Necessary technical modifications can be made without notice.
