HYDRAULIC BAKELITE-MELAMINE-UREA-BMC PRESSES |
|
|
|
|

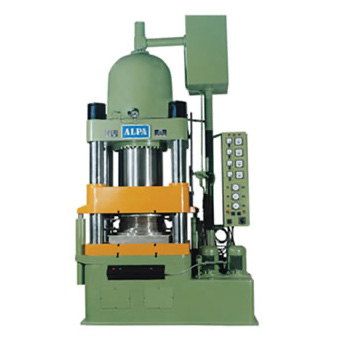

700 Tons Double Plate Melamine Press |
|

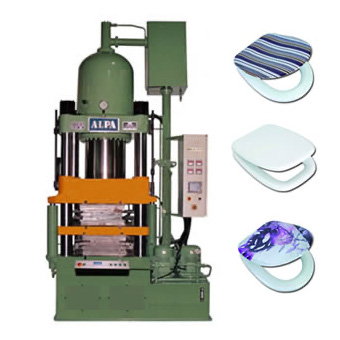

500 Tons Double Plate Melamine Press
|
| |
|
|
|
|
|

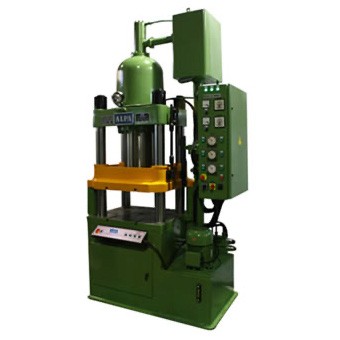

250 Tons Bakelite Press |
|

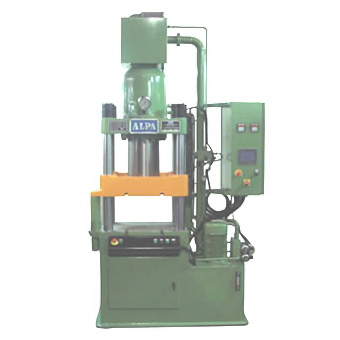

160 Tons Bakelite Press |
| |
|
|
|
|
|
TECHNICAL DATA
| MACHINE TYPE |
|
ABP-110 |
ABP-160 |
ABP-250 |
ABP-500 |
ABP-620 |
ABP-750 |
| Clamping Force |
Tons |
110 |
160 |
250 |
500 |
620 |
750 |
| Operating Pressure |
kg/cm2 |
250 |
250 |
250 |
250 |
260 |
250 |
| Motor Power |
HP |
4 |
5,5 |
7,5 |
2x7,5 |
2 x 7,5 |
7,5+15 |
| Platen Dimensions |
mm |
470x460 |
530x580 |
620x750 |
725x870 |
800x980 |
900x1200 |
| Ramstroke |
mm |
330 |
330 |
400 |
550 |
600 |
600 |
| Max.Space Between Platens |
mm |
580 |
580 |
650 |
1000 |
1050 |
1200 |
| Free Falling Speed |
mm/sec |
Adjustable |
Adjustable |
Adjustable |
Adjustable |
Adjustable |
Adjustable |
| Working Speed |
mm/sec |
2,2 |
2,5 |
2,5 |
2,5 |
2 |
2,1 |
| Return Speed |
mm/sec |
85 |
100 |
100 |
85 |
80 |
80 |
| Hydraulic Ejector Force |
Tons |
12 |
12 |
12 |
-- |
-- |
-- |
| Hydraulic Ejector Stroke |
mm |
120 |
120 |
120 |
-- |
-- |
-- |
| Overall Sizes |
mm |
1250x580
x2450(h) |
1350x700
x2600(h) |
1500x900
x2950(h)
|
2650x960
x3600(h) |
2200x1250
x4000(h) |
2400x1450
x4250(h) |
| Approximate Weight |
kg |
1600 |
2500 |
4200 |
10000 |
13500 |
18000 |
|
|
